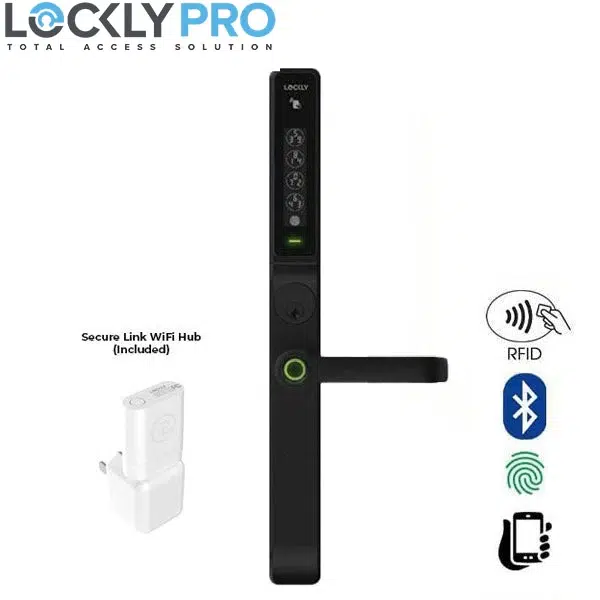

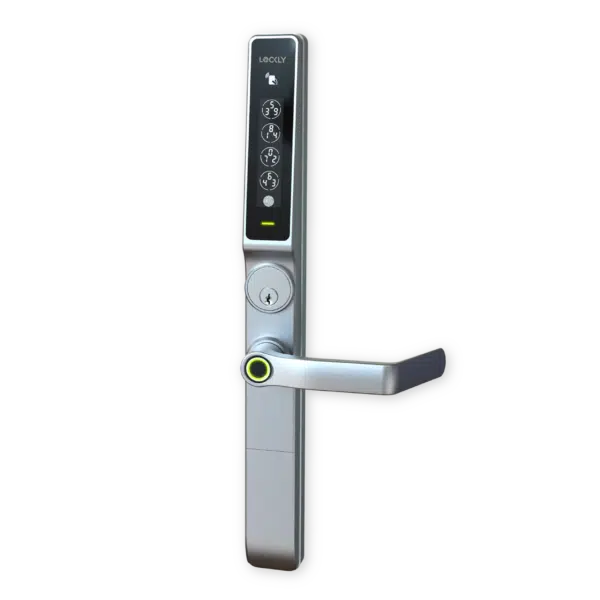

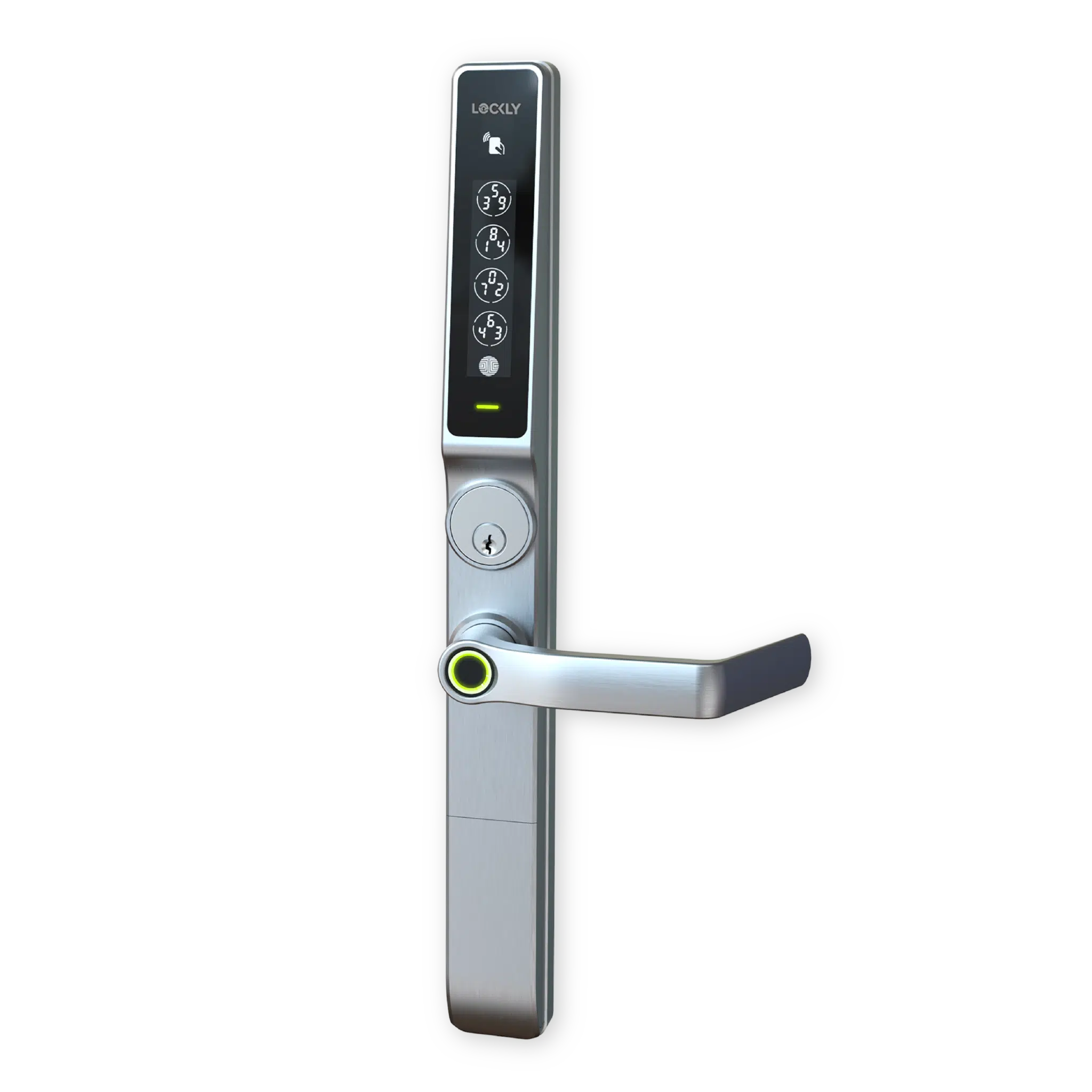

Lockly Guard Defender Exit Trim Edition PGD238LE

Lorem ipsum is placeholder text

SKU: PGD238LE

Share:

$779.99

Suppression:

BrandLockly
Special FeatureWi-Fi, Bluetooth
Lock TypeLever Lock Compatible With Exit Devices
Item Dimensions17-15/64"H x 5-25/32"W

Description

LOCKLY GUARD‚Ñ¢ Defender (238LE) Exit Trim Edition grants access for glass framed sliding and swinging entry-exit doors. This lock is ideal for storefront framed entry and exit doors, providing main entrance level access and security innovation beyond the front door. Securely lock and unlock sliding and swing-style doors.

PGD238LE is compatible with the following Push Bar Devices.
• VON DUPRIN 98/99/98-F/99-F EO, DT Rim Push Bar Devices.
• VON DUPRIN 98/9957/57-F EO, DT Series 3 Point Latching Push Bar Devices.
• VON DUPRIN 9827/9927/9827-F/9927-F EO & DT Series Vertical Rod Push Bar Devices.
• VON DUPRIN 9875/9975/9875-F/9975-F Series Mortise Push Bar Devices.
• Or other Rim/Mortise/Latching Push Bar devices that match the size of the above
door hole.

Additional information

Color

Satin Nickel, Matte Black

Features

Mechanical Specifications Handing: Field reversible Materials: All-metal chassis and escutcheon Door Thickness: 1-3/8" - 2” (35mm- 50mm) Backset: Adjustable 2-3/8" or 2-3/4" (60mm or 70mm) 1" x 2 1⁄4" round corner faceplate. Strike: Latchbolt: 1 3⁄4" x 2 1⁄4", round corner, Dust box included Bore: 2-1/8 " (54mm) diameter Borehole: 1" (25mm) diameter latch hole Physical Keys: SC1 Re-keying compatible, 2pcs include

Dimensions

8-3/16"H X 2-53/64"W (Lock body) X 6-29/64"W (Lock body and lever)
